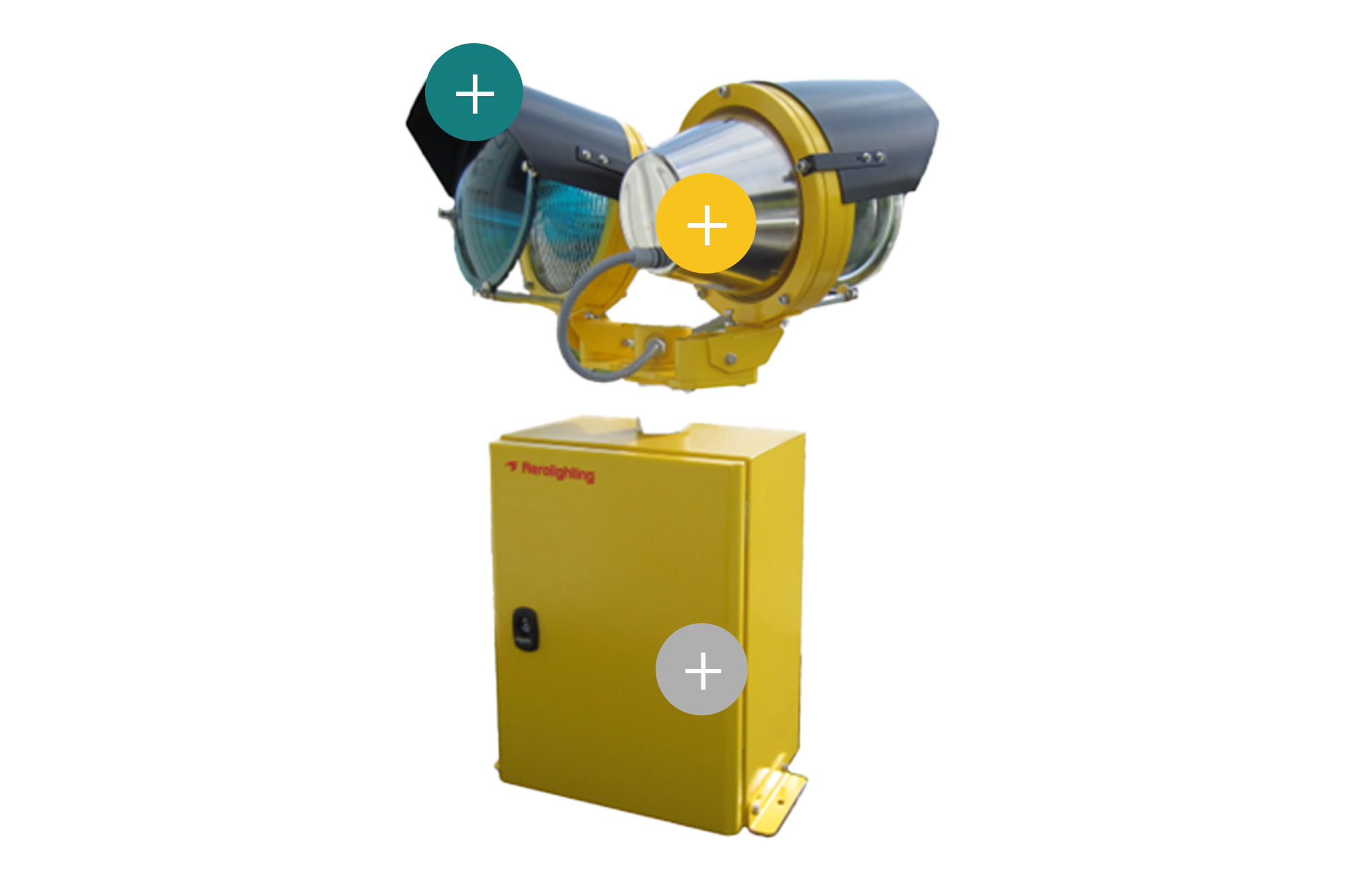

AL-2000/3000/4000
2/3/4 Heads Aeronautical Rotating Beacon
Proven quality in a classic design.
Though based on an older design, this product delivers proven, time-tested quality, ensuring dependable performance you can trust.
High-power halogen, shielded from the elements.
This high-power halogen lamp is carefully protected against rain droplets, helping extend its service life and maintain reliable illumination over time.
First quality slip ring and rotation mechanism.
Equipped with a high-quality slip ring and precision rotation mechanism, this system ensures smooth, reliable motion and long-term durability.
experience in manufacturing helipad lighting systems
2 or 3 or 4 head Rotating beacon
The aeronautical beacons AL-2000shall comply with the requirements of ICAO Annex 14 Volum I Paragraph 5.3.3,and to FAA L-801 AC150/5345-12C and French STNA standards. Depending on its version, it shall besupplied in 230 Vac or 120 Vac (50/60 Hz). It shall be equipped with 2 PAR 64 lamps(1000 W or 500 W). The life duration of the lamp shall be greater than 4000hours. It shall be with coloured filters(Green or Yellow) All external metallic parts shallbe painted (RAL 1021). Its installation is simple due tothree fixing flanges.
Security: The 2 lamps beaconstop immediately when at least one lamp is blown. Consumption: Electrical Box = 150 W + 2 lamps (of 500 W or 1000 W). Colours: Obtained using coloured Filters(Green—Ground aerodromes, Yellow for water aerodromes, Green and Yellow for FAA(L-801H) heliport. Flashes frequency: 26flashesper minute. Light head elevation angle: Possible adjustment possible from –5°to +35°. Finish: All external partsare painted RAL 1021, except lights protections that are in stainless steel. Fixing: By three holes located on the three fixation flanges
| Design | Rotating beacon |
|---|---|
| Material | Aluminium Steel |
| Dimensions | 500x800x500mm |
| Use | Rotating beacon for airfield |
| Compliance | ICAO Annex 14 |
| Color | White, Yellow, Green |
| Power | 500W lamps, 1000W lamps |
